Description

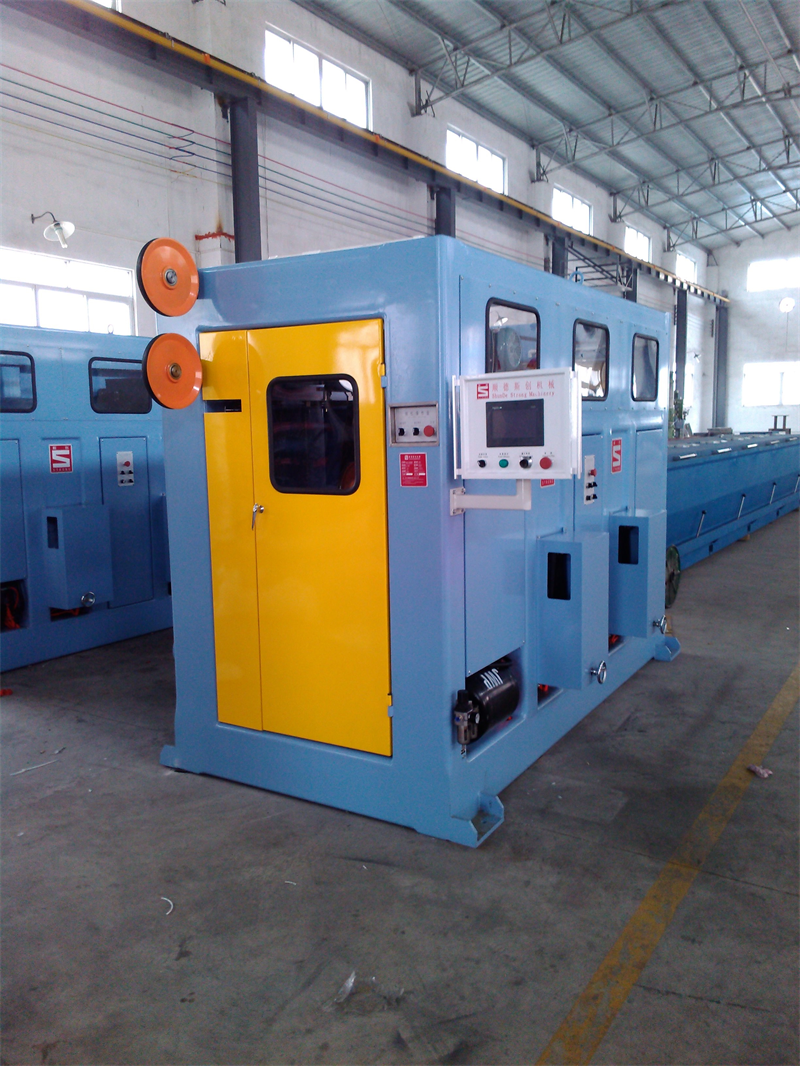

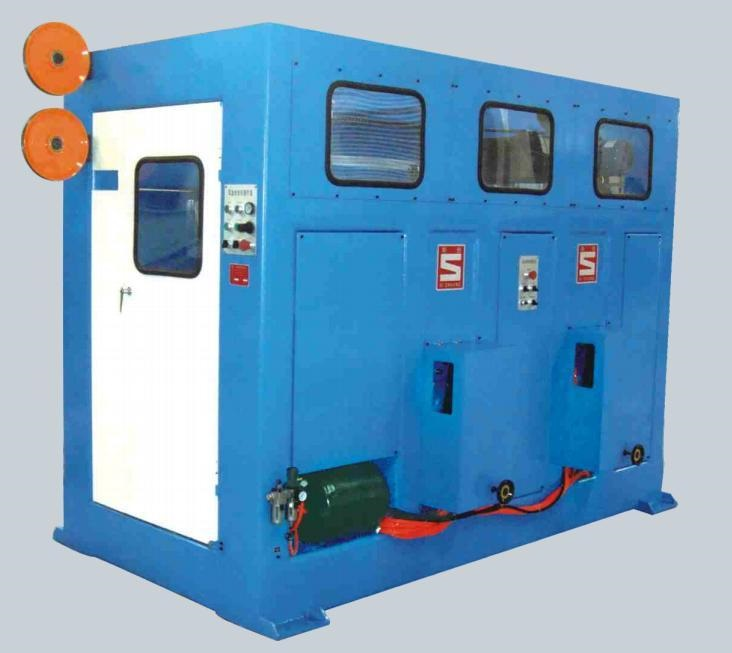

This semi-automatic double spooler is ideal for coiling and take-up of Φ0.5-3.5mm copper and copper alloy, as well as 0.5-4.5mm aluminum and aluminum alloy. This high speed double spooler consists of take-up device and electric control system.
Features
1. Compact design for fast installation and space-saving, and upgraded design on the basis of advanced equipment.
2. This semi-automatic double spooler enjoys maximum wire drawing speed of 1800m/min.
3. Sufficient supply of spare parts and responsive technical support.
4. Automatic change of bobbin during the production process.
5. Three-phase DC drive with low maintenance.
6. The high speed double spooler is suitable for bobbins of different sizes.
7. The semi-automatic double spooler is characterized by stable running, low noise and low maintenance.
Technical Specifications
Item
|
Specifications
|
Max. production speed (m/min)
|
1800
|
Single wire dia. (mm)
|
Copper: Φ0.4 ~ 3.5
Aluminum: Φ0.5 ~ 4.5
|
Bobbin sizes
|
PND400-PND630
|
Motor power of take-up device
|
2 × 15
|
Type of brake
|
Hydraulic disc brake
|
Machine dimensions (L × W × H)
|
3000 × 2800 × 2200
|
Net weight (kg)
|
4000
|
Working Requirements
1. Ensure that the workshop has enough space, with minimum height of 4-5 meters.
2. Convenient raw material supply nearby.
3. Qualified staff is kept for the installation, operation and maintenance of this high speed rod breakdown machine.
4. Well-sealed annealing liquid circulating pipeline.
5. This high speed double spooler requires stable and sufficient water, power and compressed air supply.
6. Our semi-automatic double spooler works together with 10-ton (at least) crane, vapor generator, air compressor, wire threader, wire drawing dies, wire drawing lubricant, gear oil and heat exchanger.
Note
1. Please refer to your own requirements on production capacity when choosing the machine.
2. Please carry out daily check and maintenance according to requirements.
Case
In November 2013, copper wire semi-automatic double spooler was installed at ACL Cable Company, Kenya.
